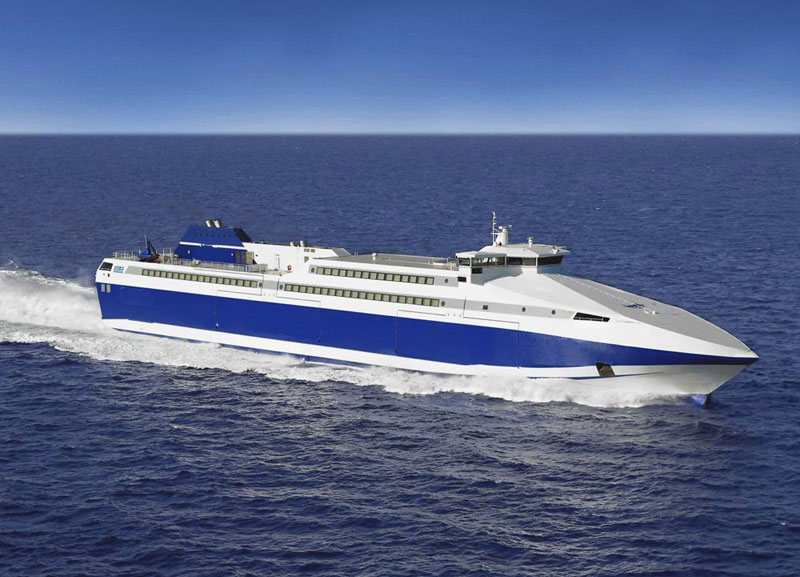

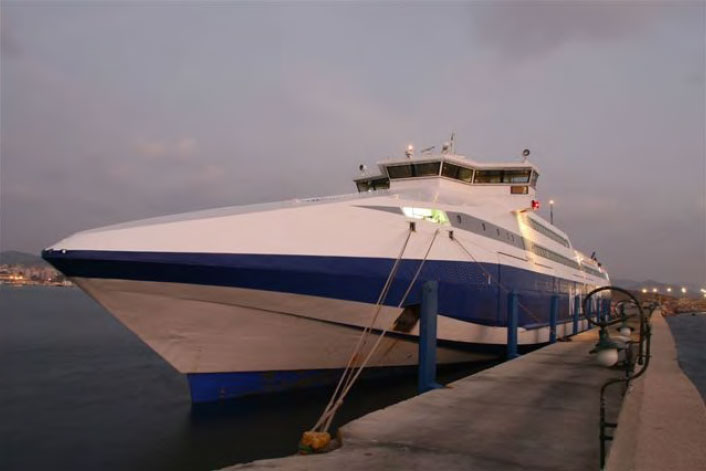

One of the fastest ships of the Mediterranean. Built in France in 1999, it’s an example of luxury and elegance.
Passenger Capacity 1000, Vehicle Capacity 210, Cars/truck combination garage capacity 146/12, Fully air-conditioned.

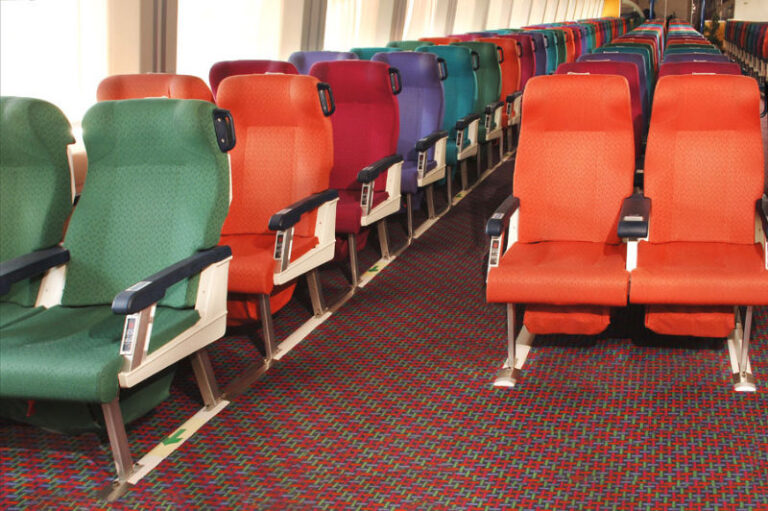

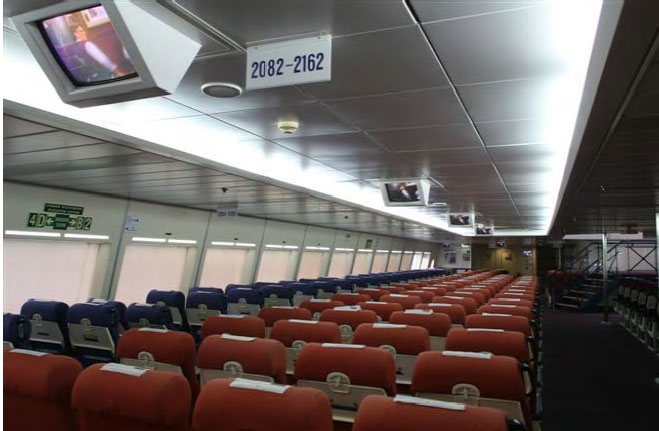

Economy and First class Pullman seats, Economy and First class bar, 52 satellite televisions,Headsets for music at every seat.
Passenger elevator, Escalator staircases, Reception, Jewellery safekeeping, Telephone, WC for disabled.
SPECIFICATIONS:
BUILT : 1999 in France
L.O.A. : 119 M
L.W.L. : 105 M
BREADTH MOULDED : 15,70 M
DRAUGHT AT DWL : 2,688 M
MAX T-FOIL DRAUGHT : 4,7 M
DEPTH 11,20 M
L.O.A. 119 M
DEADWEIGHT (DWT) : DWT 500 T
LIGHTSHIP 1468,4 T
DISPLACEMENT 1968,4 T
GRT : 6177
NRT : 1853
CONSTRUCTION MATERIAL : STEEL & ALUMINIUM
CLASSIFICATION SOCIETY- SOCIETY No B.V
CLASS RATING : I+HULL+MACH,HSC-CAT B UNRESTRICTED NAVIGATION +AUT -UMS
TYPE OF VOYAGE : B
GMDSS : A1+A2
VDR/AIS : INTALLED
SWH- SIGNIFICANT WAVE HEIGHT : 4,5 M
RANGE AT CONTINUOS SPEED : 900nm @ 36kn – 1200nm @ 20kn
CARS/TRUCK CAPACITY:
CARS CAPACITY 210
MOTO CAPACITY 10
FREE HEIGHTS

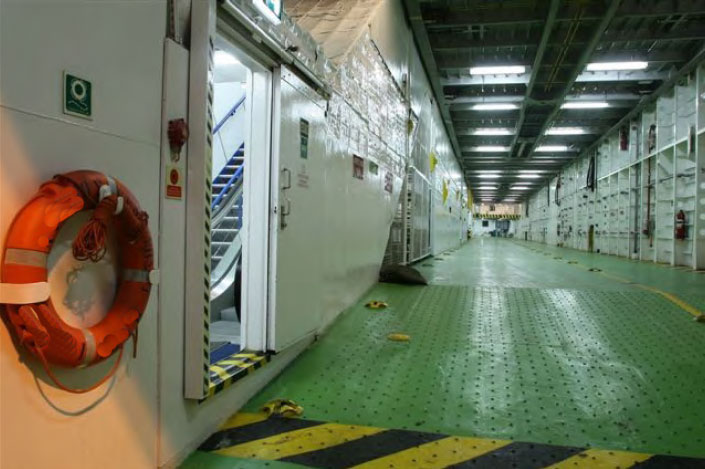

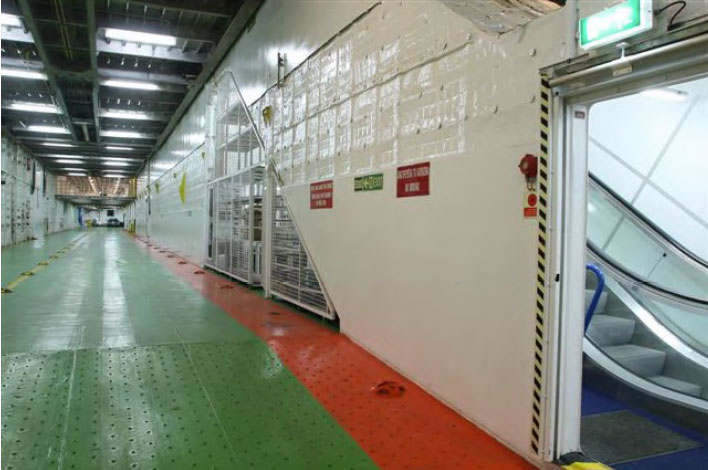

MAIN GARAGE 4,50 M / 2,845 M
MAX AXLE LOAD (MAIN GARAGE) 12 T / AXLE
RAMPS DIMENSIONS:
STERN PASSENGERS RAMP 1 X 6,3 X1,6 X 5,2 M
MAIN VEHICLE RAMP 2 X 7,8 X 4,00 X 4,7 M
TANK CAPACITIES
MARINE GAS OIL 180,43 M3
LUBRICATING OIL 3,0 M3
FRESH WATER 20,39 M3
BLACK & GREY WATER 7,00 M3
SLUDGE TANK 2,11 M3
BILDGE HOLDING 8,44 M3
CONSUMPTION:
MGO 0.1 % AT 24 KNOTS : 3,2 MT/HOUR
PROPULSION CONFIGURATION DIESEL MECHANISM
PROPULSION SYSTEM (4) 4 STEERING WATER JETS KAMEWA 125-S11

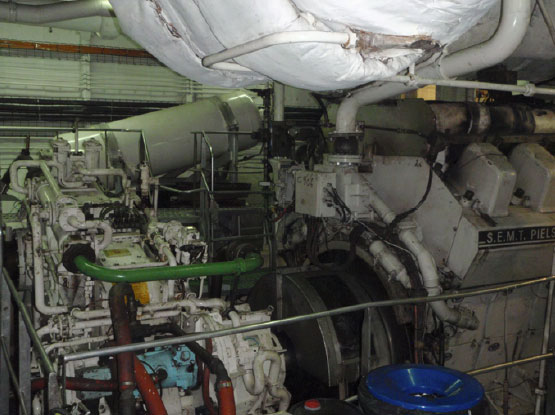

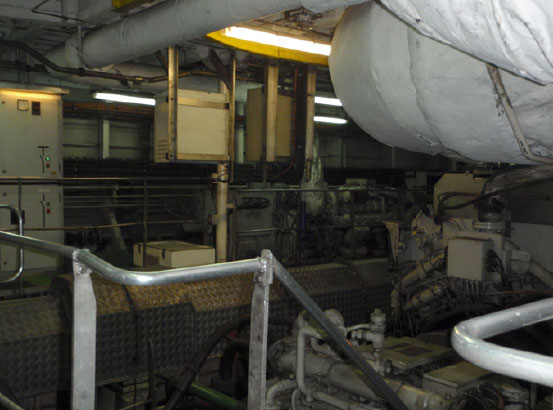

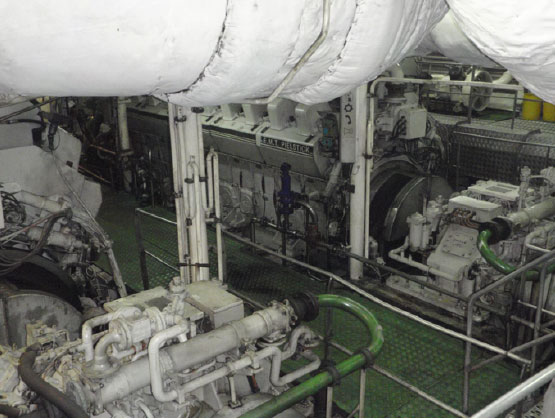

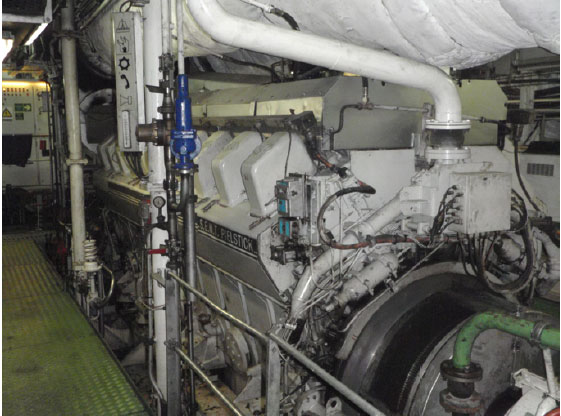

MAIN ENGINES (4) 4 SEMT- PIELSTICK TYPE 20 PA6 BV STC POWER RATED 8100KW
@1050RPM EACH (TOTAL OF 32400KW ~ 44000BHP)
GENERATORS (3) 3 GENERATOR MAN DIESEL TYPE D2842 LE 301 POWER RATED
532 KW @ 1500 RPM EACH
ALTERNATORS STAMFORD HCM534F
GEARBOXES (4) RENK TYPE ASL188 & ASL 62
RUDDERS 4
RIDE CONTROL SYSTEM MDI-RCS
SEAWAGE TREATMENT ORCA IIA -500
AIRCONDITIONING INSTALLED
TYPE OF FUEL OIL M.G.O 0,1
CONSUPTION IN SERVICE SPEED 36,5kn 5,5 T/h , 20kn – 2,5 T/h
CONSUPTION IN HARBOUR 1,2 M3/h
OIL CONSUPTION 0,51 LIT/h
CABINS & BERTHS:
OFFICERS 2 x 2 BERTHS + 2 X 1 BEARTH
CREW 4X4 BERTHS
SEATS
DISTINGUISHED LOUNGE 224
ECONOMY LOUNGE 776
SUN DECK SEATS N/L
PASSENGER CAPACITY:
PASSENGERS CAPACITY 1000
CREW acc. EC CH.III 22
LIFE SAVING EQUIPMENT :
MES EVACUATION SYSTEM
No OF MES LINKED TO LIFE
RAFTS:
4 X MES VICKING SES Tff 140
LIFE RAFTS 8X140 persons & 2X25 persons
RESCUE BOAT PORT & STBD 2 MOTOR BOAT
ANCHORS 2 X HHP POOL – TW FULLY BALLANCED 900 Kgr
CHAIN 32mm U3 A1 / 7 SHACKLES CHAIN
CABLE N/A
FACILITIES:
BARS 2 BARS + 1 SELF SERVICE
PLAY ROOMS N/L
SHOP N/L
ELEVATORS 1 X 8 PEARSONS
ESCALATORS 1 ELECTRIC ESCALATOR
