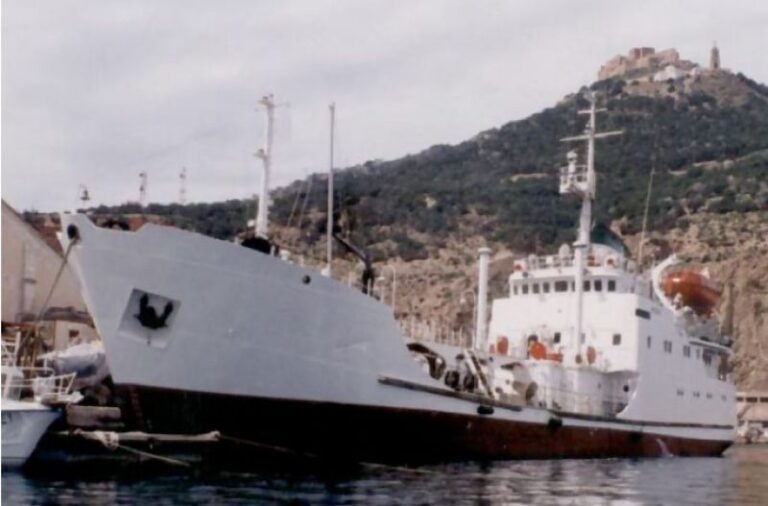

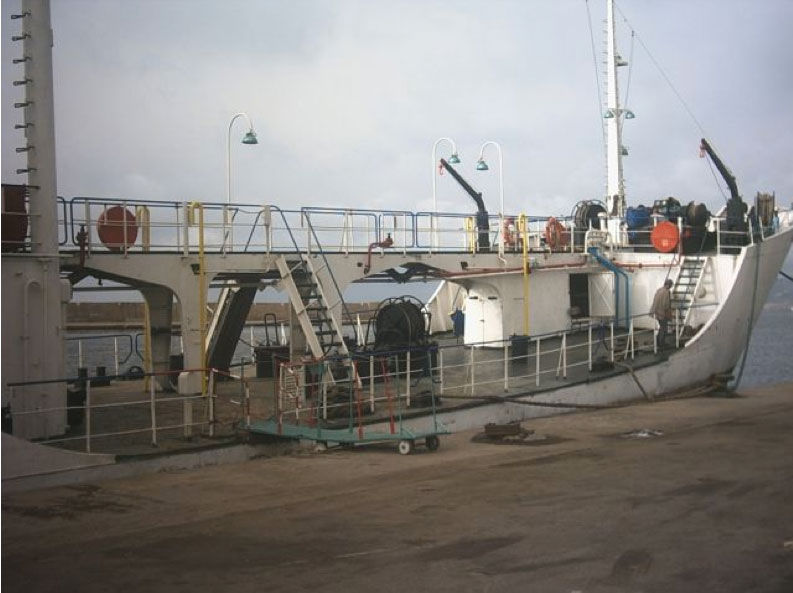

Oil Tanker vessel 53.80 mtr built in 1997. Product Can Be Load :Vegetable Acid and Distillates Vegetable Oils , Vegetable Protein Solution ( Hydrolysed ) Water, Waxes Zinc Alkenyl Carboxamide Product Information taken from the international pollution prevention Certificate for the carriage of Noxious Liquid Substances in Bulk.
Specifications:
- Built: 1997
- Grt/Nrt/Dw: 510/213/600
- Fb: 0.478 Mm.
- Class: Bv (Expired)
- L/B/D: 53.8/9.4/4.2 Mtrs.
- Draught up to Main Deck: 3.73 Mtr.

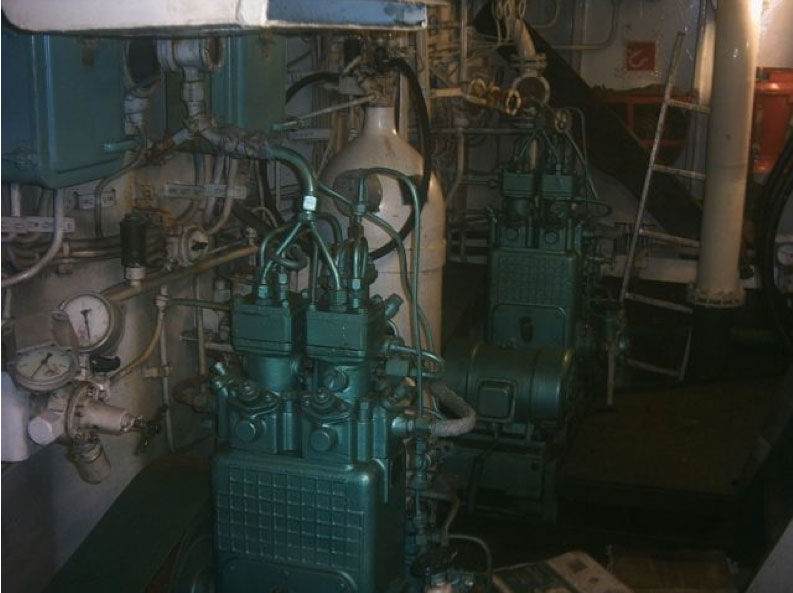

- Engine Equipment:

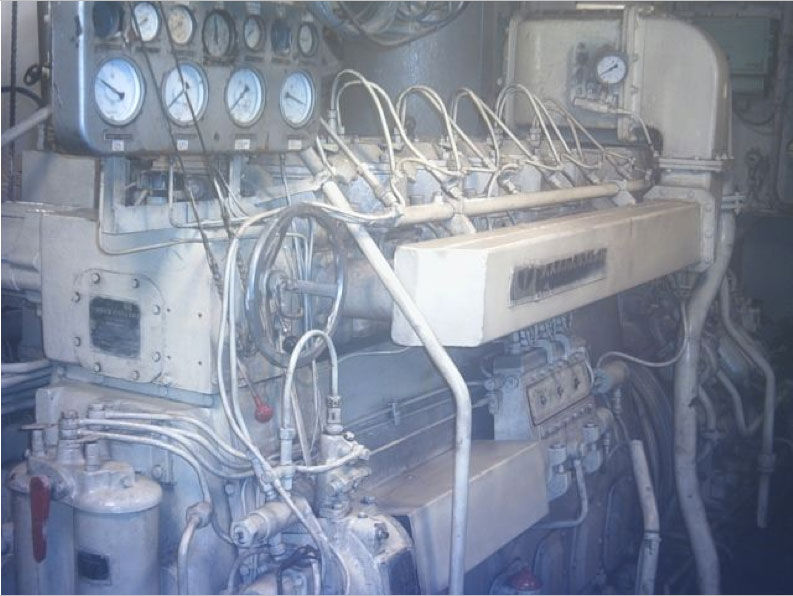

- Main engine. Dal Diesel 6 Ch Spn, year of built 1992 Russian Built

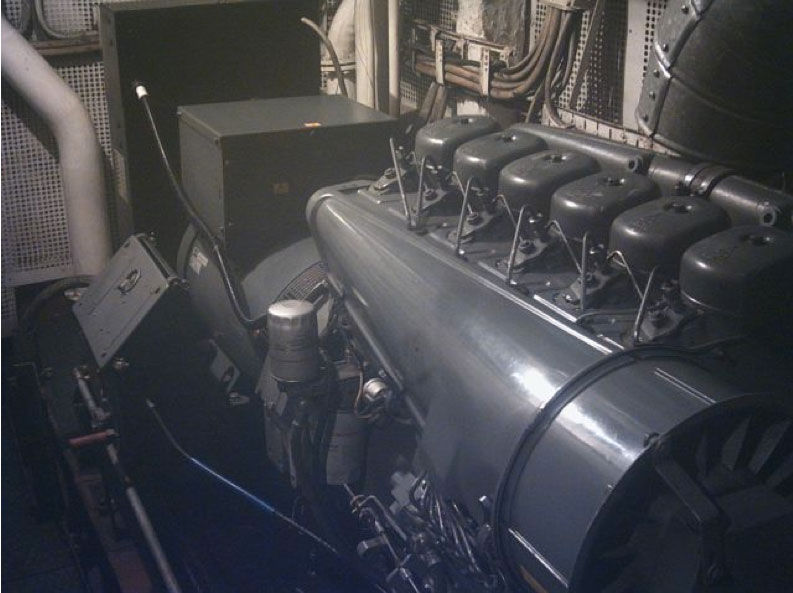

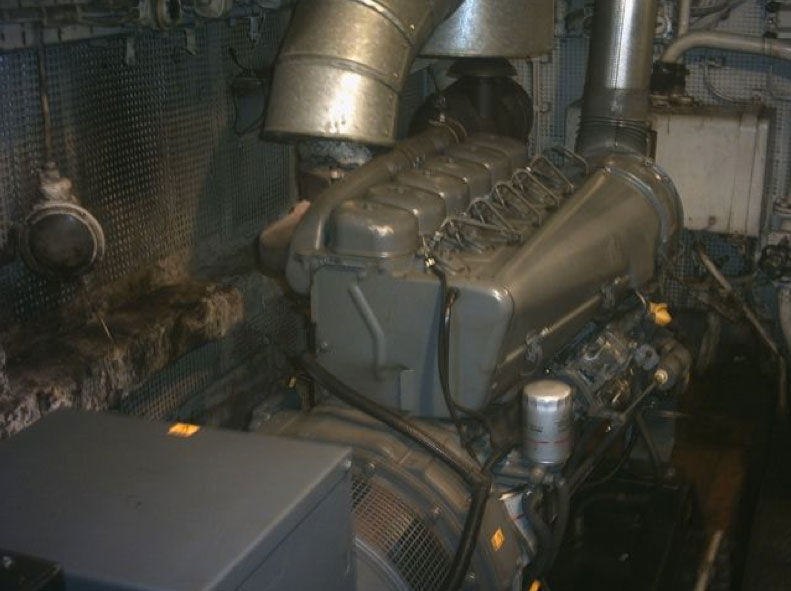

- Two Generators : 6 Cyl.,Model Qub 62, Engine Type : Deutz
- Alternator Type : Ac-Eco 342 S 4, Rated Frequency : 50 Hz,Rated Speed :
- 1500 Rpm Rated Active Power ( Ltp) : 49.6 Kw , Rated Apparent Power : 62 Kva
- Rated Voltage 3ph Line To Line : 380/400/415 V,Year Of Built : 2003
- Generator 6 Cyl.,Engine Type : Volvo, Alternator Type :
- Hitzinger Rated Apparent Power : 130 Kva,
- One Gen. 6 Cyl. ( Russian Built ) .6 Ch 12/14,Rated Active Power
- 50 Hz
- Fire Pumps : Two Fire Pumps Rate 63 Cm/Hour .
- Propeller : 1 Screw Solid Ord 2.5 At 340 Rpm

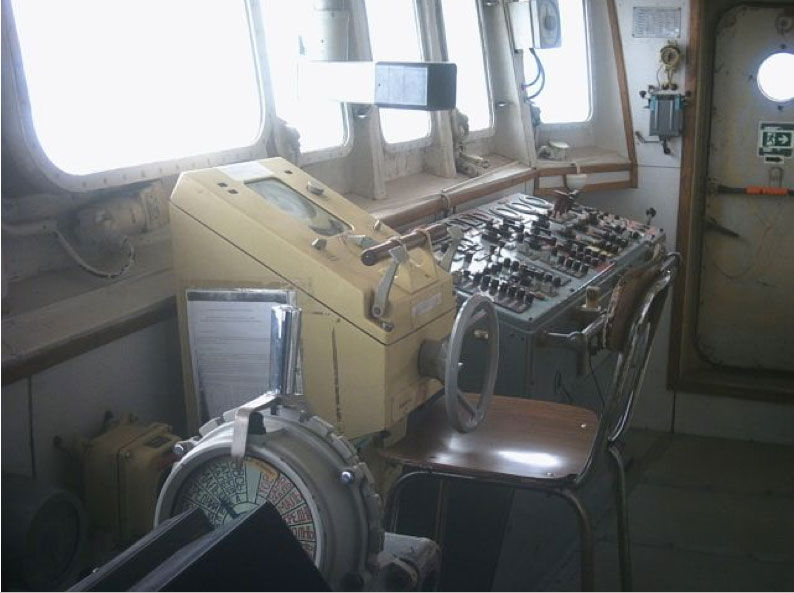

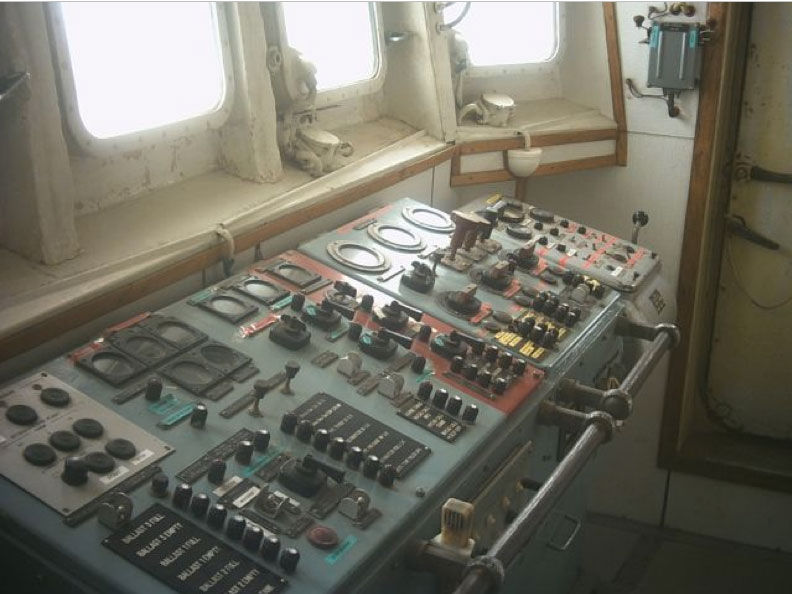

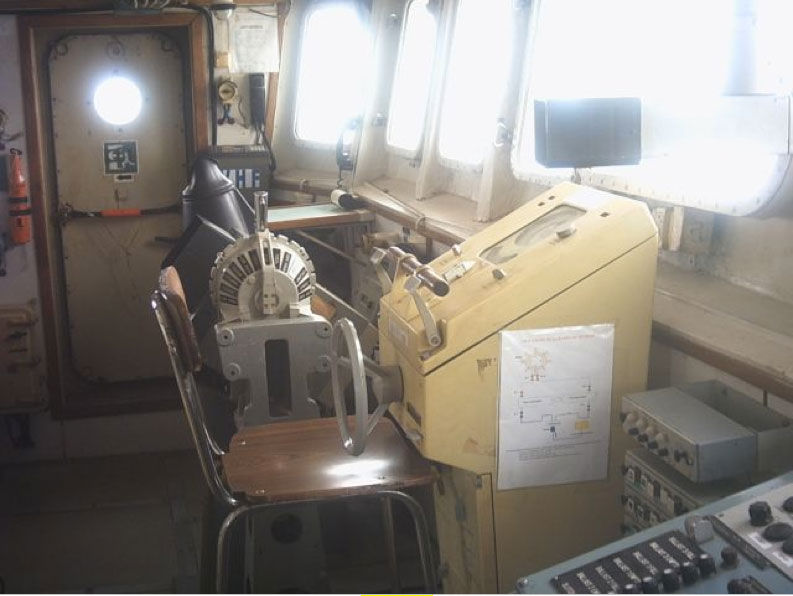

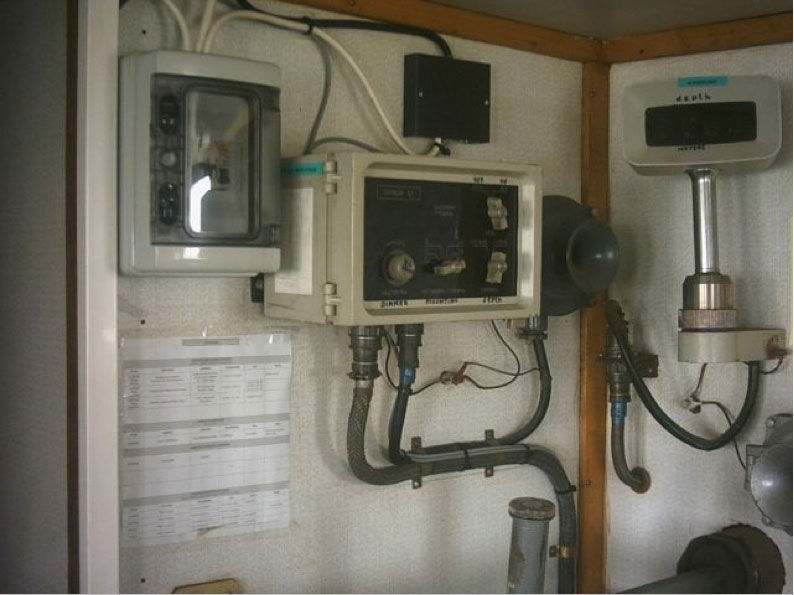

- Bridge Equipment :

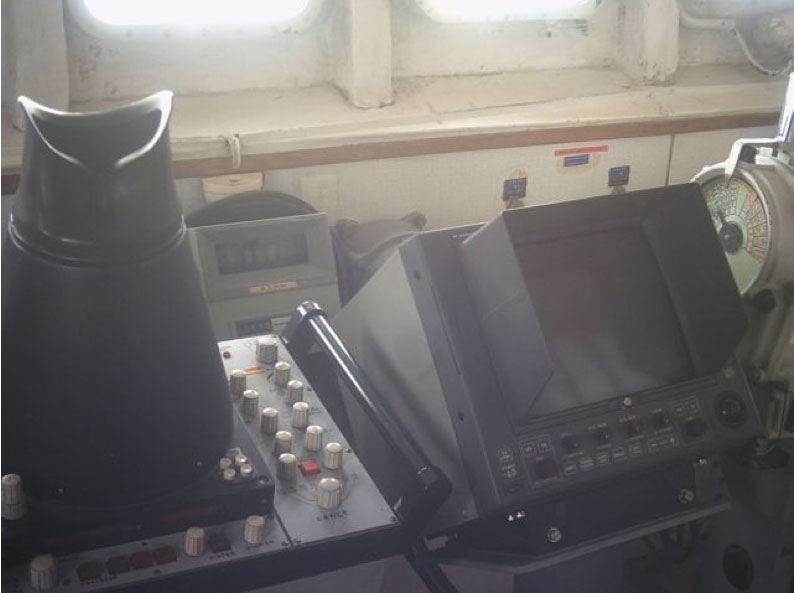

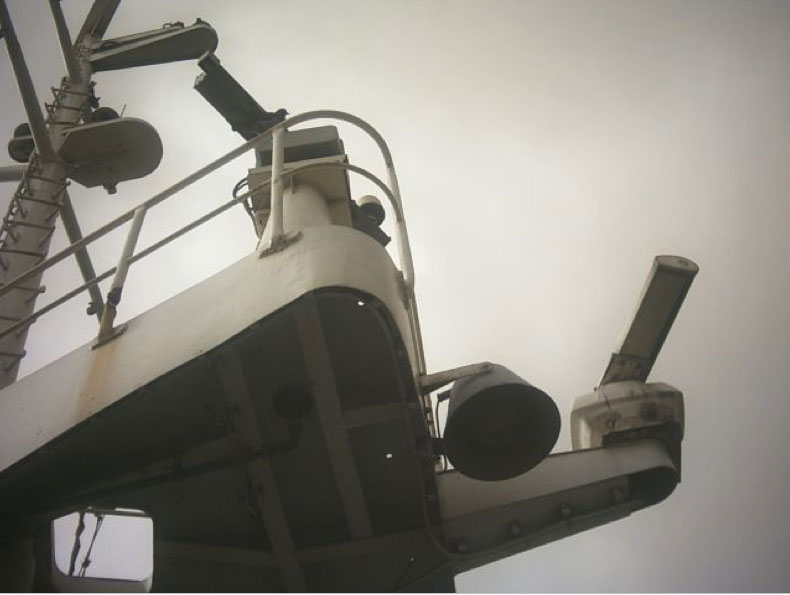

- One Radar, Type : Furuno Rdp-119, Model : Fr- 1505 Mark – 3
- One Radar ( Russian Built ) , Type : Prtchora 1y

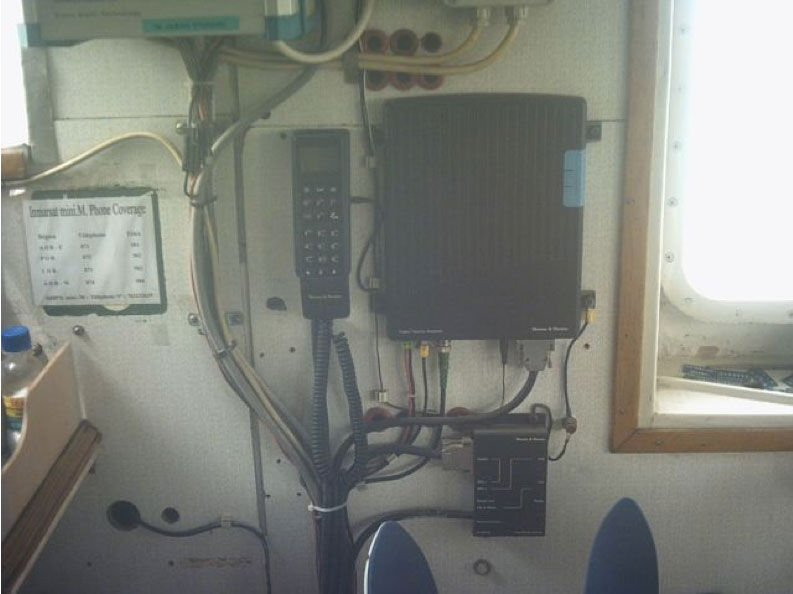

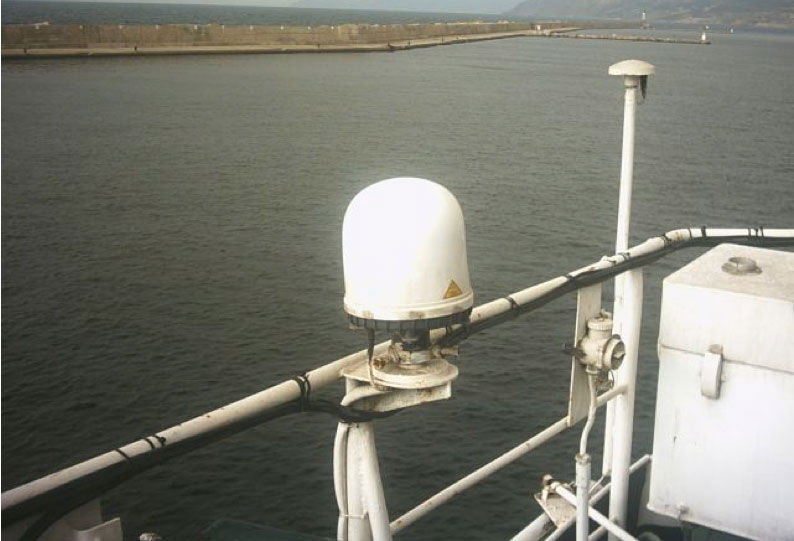

- One Inmarsat Mini M Capsat – Phone, Type : Thrane & Thrane
- One Mf Dsc Terminal / Resceiver Dsc – 6a, Type : Furuno
- One Vhf Dsc Radiotelephone Fm-8500, Type : Furuno
- One Ssb Transceiver Fs-1562-1s, Type : Furuno 7/ One Navtex 2, Type :
- Lo – Kata 8/ One Gps Navigator, Type : Furuno ,Model : Gp – 30 9/ One
- Electronic Charts Drawer , Type : Seiwa 10/ One Graphic Gyro Indicator 11/ Two

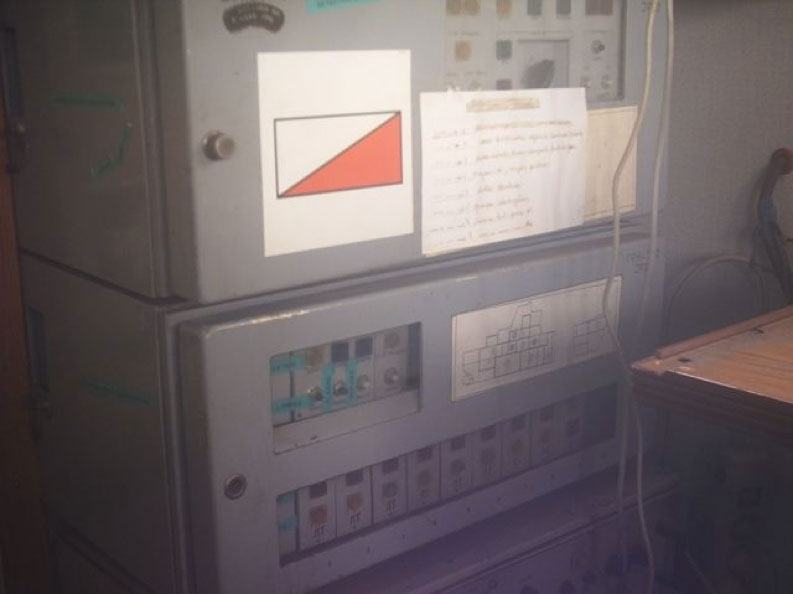

- Digital Echo Sonder, Type : Exolot 12/ One Fire Indicator Panel , Type : Delphine
- One Ais Jhs – 182, Type : Jrc Ncm-779
- One Wind Indicator

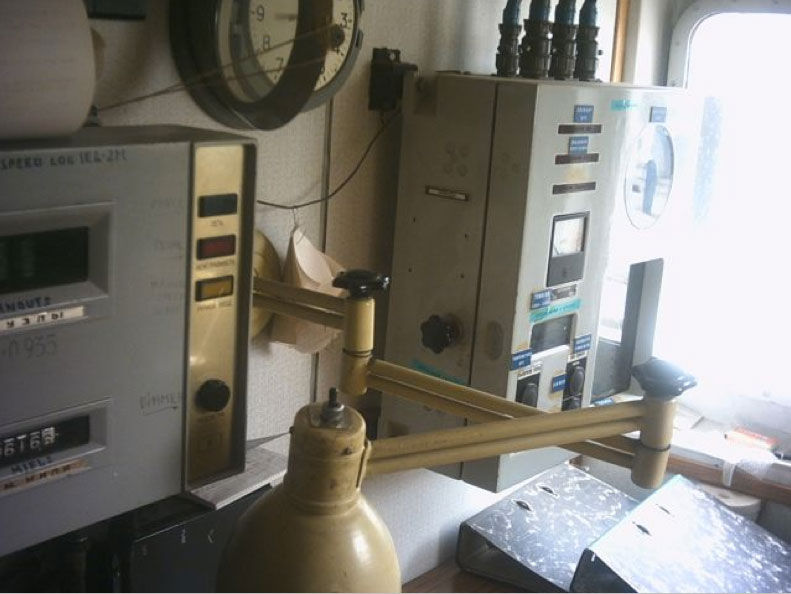

- One Speed Indicator ( Loch )
- One Gypo Compass , Type : Aist 12-10 5yp7
- Three Portable Vhf Transceiver, Type : Sailor Sp 3911
- Chimical Faom Station ,Tank Capacity 600 Liters
- Type Of Tankers : Fls Tanker – Edible Oil .
- Product can load : Vegetable Acid And Distillates
- Vegetable Oils
- Vegetable Protein Solution ( Hydrolysed )
- Water
- Waxes
- Zinc Alkenyl Carboxamide
- Product Information taken from the International Pollution Prevention
- Certificate for the carriage of Noxious Liquid Substances in Bulk .
- Tanks Existing On Board
- Fpt Frame Fore – 8 Sw
- N°2 Frame 8 – 17 Sw
- N°3 Frame 86 – Aft Fw
- No Side Ballast Tanks Mean No Possibility Of List Correcting .
- List Is Corrected With Cargo .
- Segregation Of Tanks :
- On Board 4 Cargo Tanks
- Cargo Tanks 1 And 2 Are Communicate
- No Manifold And Piping For Cargo
- Loading And Discharging From Coaming Tanks On Deck
- * Number Of Cargo Pumps / Kind Of Cargo Pumps :
- 01 Portable Pump Rate 32 Mt/H .
- Do Consumption :
- In Port : 11.5 Kg/H
- At Sea : 2.5 Mt/ 24h
- No Coiled / No Heating / no piping in and out of the Cargo Tanks .
- Cargo Tanks Coated With Epoxal Elt B Mixed With Epoxal Elt A .
- No Boilers on Board .
