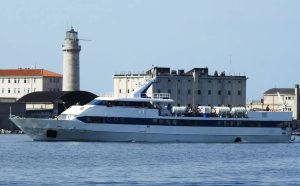

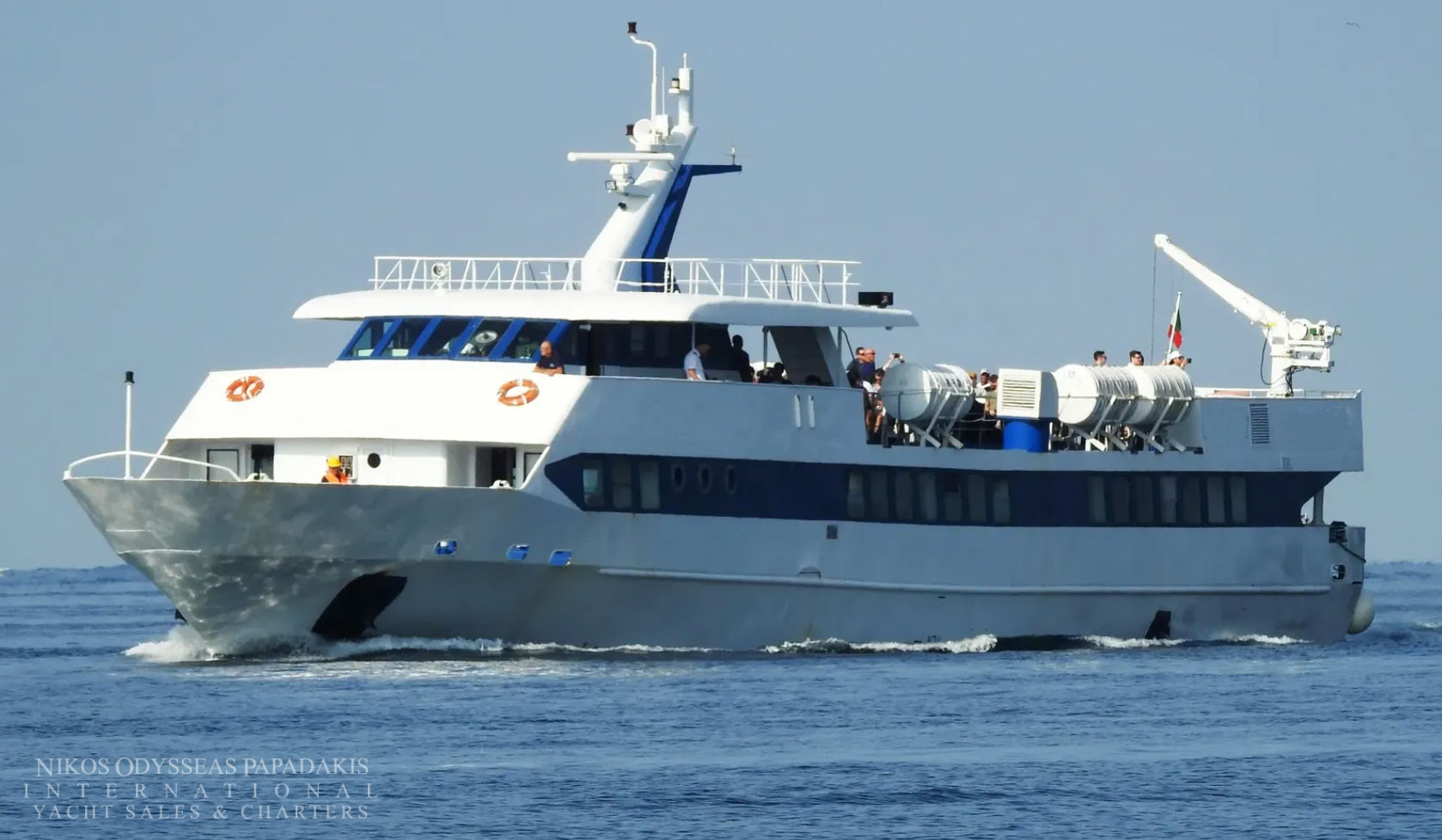

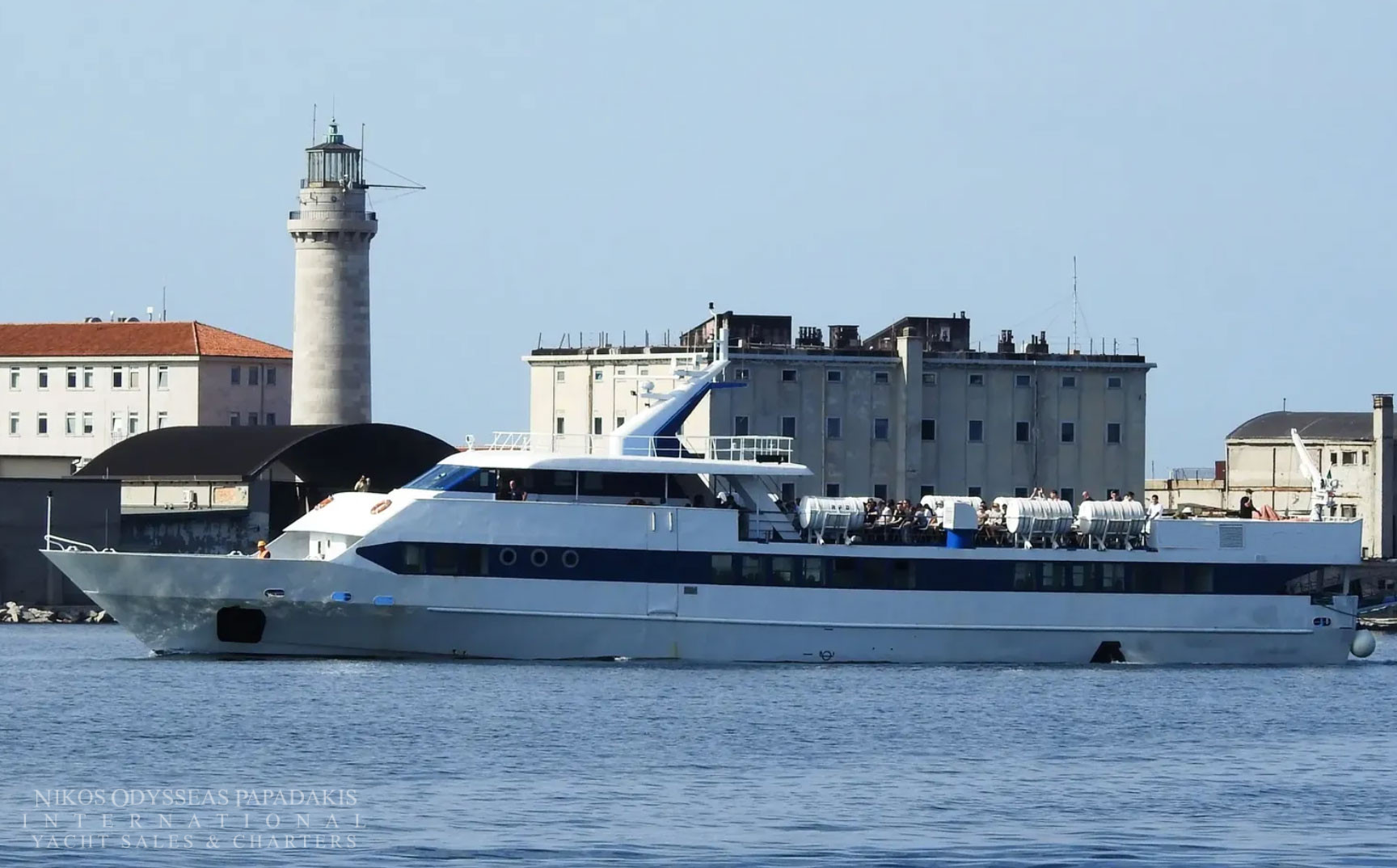

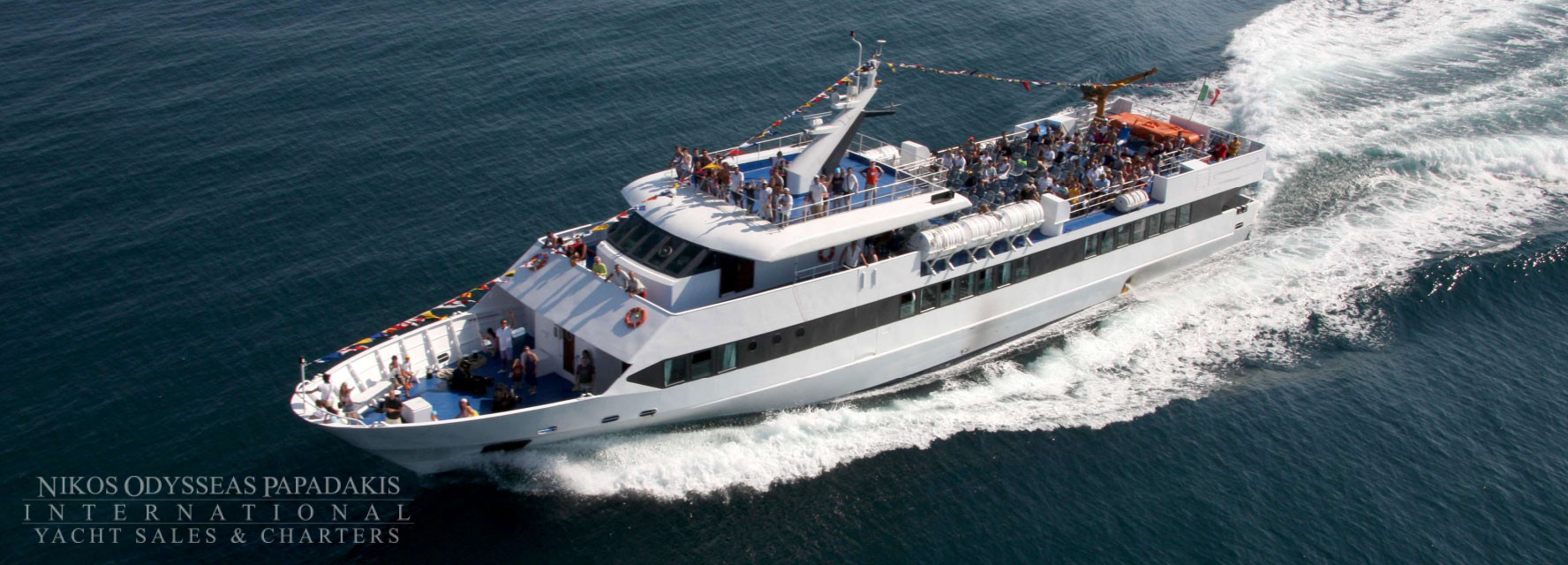

Passenger Vessel 42m / 518 Pax

Size: 42.35 Year: 1988 Yacht Code: MY/3521 Engines: 2 x 1,230 kw CAT Price: ENQUIRY

  • Price

    €0 - €12000000

Passenger Vessel 42m for sale – 518 Pax – 18 knots

General Overview:

  • Shipyard: Cantiere Navale Artemio Bugari Eredi
  • Year of Construction: 1988
  • Navigation Category: Area A1 – Class B (European waters – within 20 miles of the coast)
  • Max Passenger Capacity: 518
  • Service Speed:18 knots
  • Principal Dimensions
  • Length Overall (L.O.A.):42.35 m
  • Moulded Breadth:8.21 m
  • Full Load Draft: 2.21 m
  • Gross Tonnage: 198.72 GT

Hull & Superstructure:

  • Type: Dedicated passenger vessel
  • Construction: Welded steel hull
  • Layout: One main deck, one superstructure deck
  • Watertight Integrity: 8 transverse watertight bulkheads

Propulsion & Manoeuvring:

  • Main Engines: Two propulsion diesel engines, CATERPILLAR INC. CO., type 3512 B DTA, four-stroke single-acting, 16-cylinder V-type, turbocharged, with a power output of 2 x 1,230 kW at 1,800 rpm, coupled to two fixed-pitch propellers
  • Propellers: 2 x fixed-pitch propellers
  • Thruster: Transverse bow thruster (electric)
  • Controls: Main propulsion control panels with a repeater on the starboard wing

Electrical Systems:

  • Electric power is produced by two (2) alternating current (AC) generators, each with a capacity of 70 kVA, 380 V, 50 Hz. These are driven by DEUTZ diesel engines, model TD 226-6, providing 80 kW at 1,500 rpm. The vessel is also equipped with an emergency generator with a capacity of 19 kVA, 380 V, 50 Hz, AC

Passenger Accommodation :

  • The vessel is equipped with a lounge located on the main deck featuring a bar, six (6) washrooms located in the fore (forward) section, and an open deck space on the upper deck situated aft of the bridge

Navigation & Communication Equipment:

  • Positioning: GPS JRC – NWZ 4570 & AIS System SAAB R4 NAV-SYSTEM
  • Radar: FURUNO
  • Heading & Steering: Magnetic compass & FURUNO NAVPILOT Autopilot
  • Depth: JMC Echo sounder
  • Communication: SKANTI VHF 1100 DSC
  • Emergency: SAILOR SE406II EPIRB

Safety & Firefighting:

  • 1 Rescue boat
  • 6 Inflatable life rafts (100-person capacity each)
  • 2 Inflatable life rafts (50-person capacity each)
  • 650 Adult life jackets (with lights)
  • 65 Children’s life jackets (with lights)
  • 8 Lifebuoy rings

Fire Extinguishing Systems:

  • Fixed system (5 x cylinders) for machinery space
  • Fixed sprinkler system for passenger and service areas
  • Water-fed fire main system
  • Full suite of portable extinguishers per regulations

Accommodation & Deck Machinery:

  • Passenger Areas: Main deck lounge with bar, 6 forward restrooms, and an open upper deck space (aft of the bridge)
  • Crew Areas: 2 upper deck cabins and below-deck changing rooms
  • Deck Equipment: 2 forward anchor windlasses (with mooring rollers) and 1 aft mooring winch

PRICE : INVITE BEST OFFER, AS BROKERS, CAN GUIDE THE OWNERS IDEA CLOSELY.
