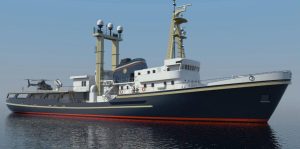

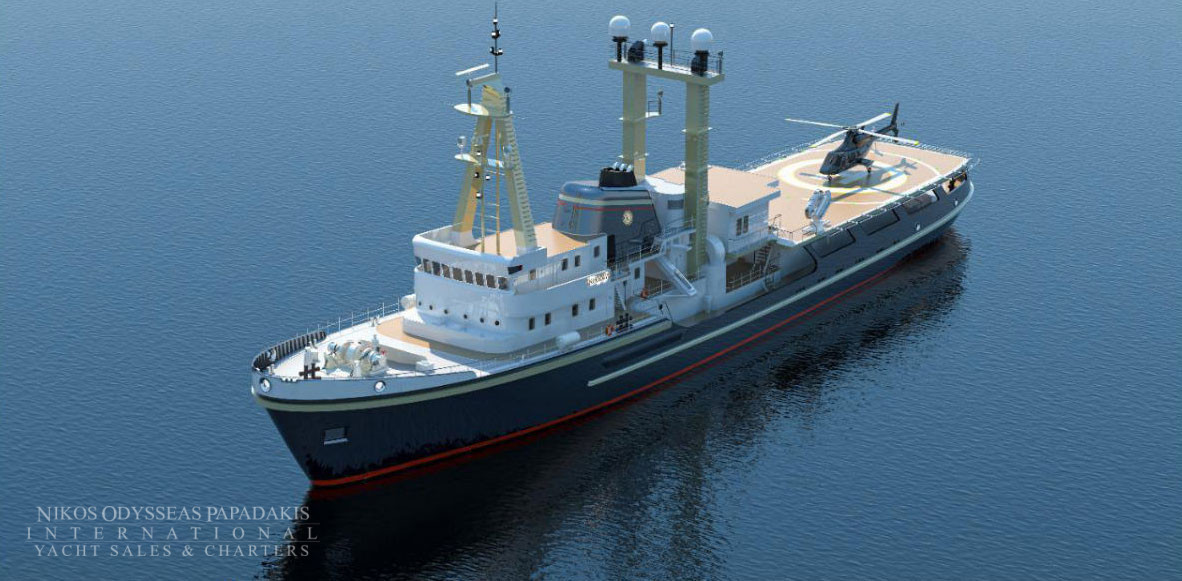

Expedition Vessel 77.40m

Size: 77.40 Year: 1974 Yacht Code: MY/3623 Engines: 2 X 4440 hp Deutz Price: 11,000,000€ ENQUIRY

  • Price

    €0 - €27000000

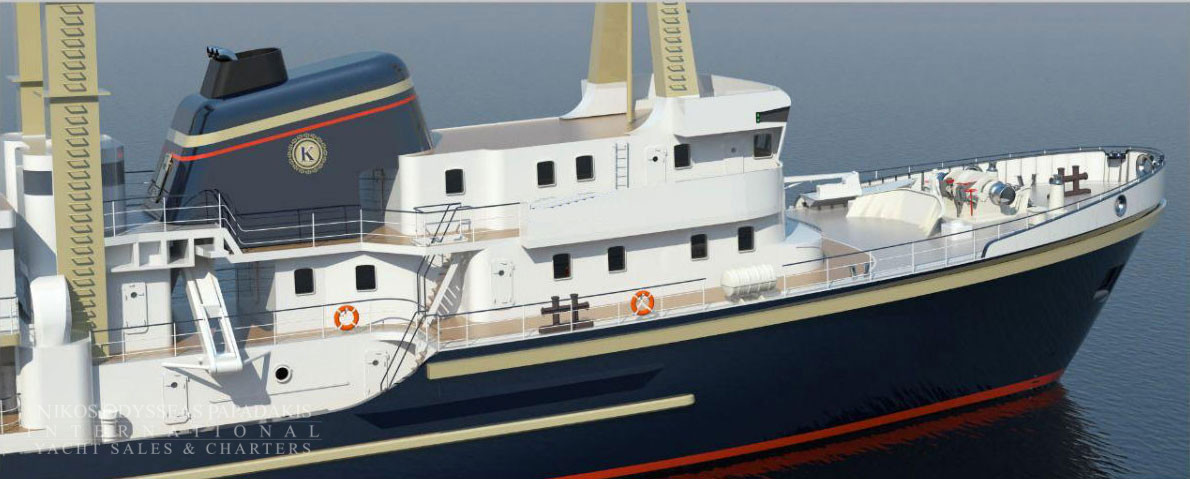

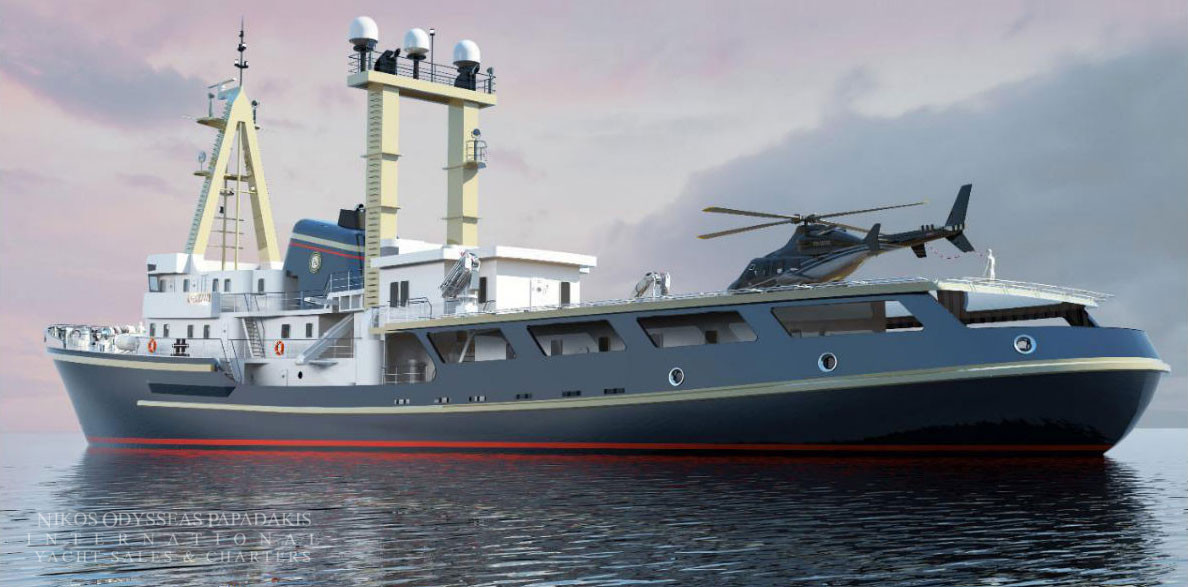

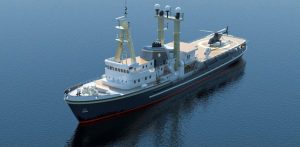

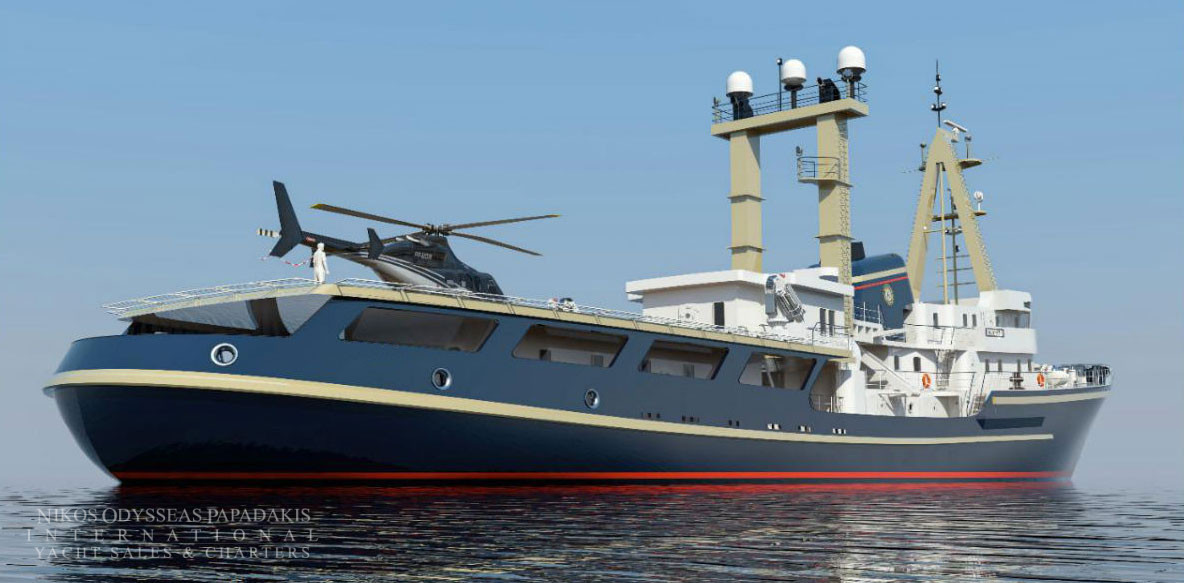

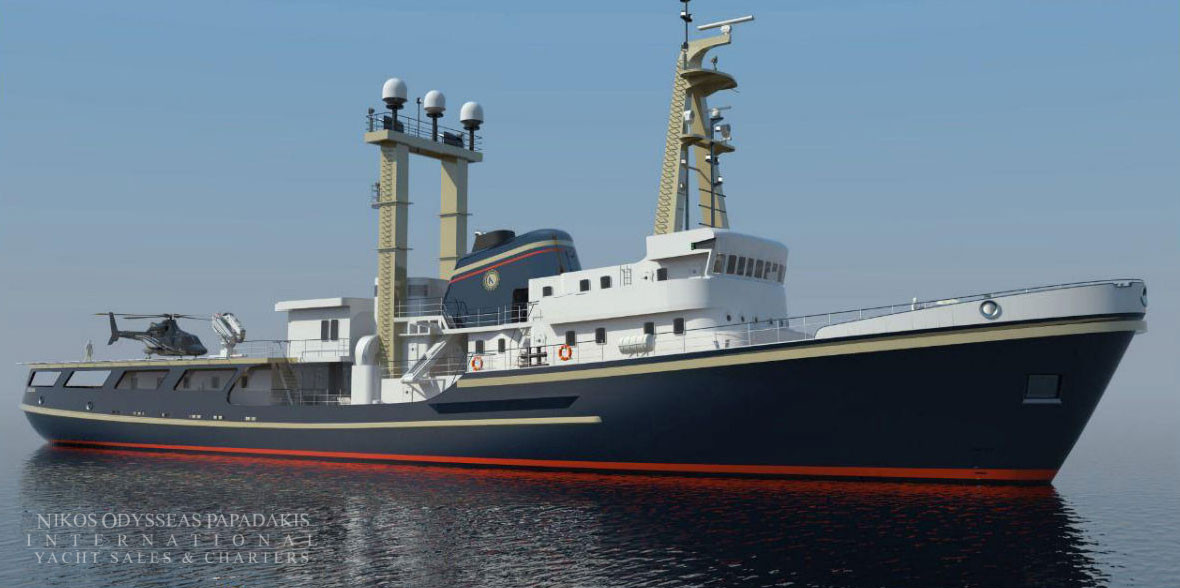

Expedition Vessel 77.40m. for sale, either “as is” or fully finished according to the current refit plans/proposals (with delivery in 18 months).

This powerful 77.40-meter expedition vessel was originally constructed as a salvage tug designed for demanding marine rescue operations, boasting an ice-class hull for challenging routes and specialist towing, firefighting, and diving capabilities. Twin Deutz-MWM diesel engines deliver a combined output of 8,800 horsepower and a towing force of 135 tons, supporting ocean-going missions with an impressive endurance thanks to a 634,000-liter fuel capacity. Advanced navigation technology, heavy-duty winches, and FiFi-grade water cannon systems enable the vessel to handle both emergency response and offshore support assignments in extreme conditions.

She can accommodate up to 18 guests in 9 staterooms, with 20 crew members.

Highlights:

  • Expedition vessel originally built for salvage and rescue, suited for global long-range deployments.
  • Features twin Deutz-MWM engines, ice-class hull, and specialist emergency equipment for challenging environments.
  • Extended operational range and robust towing capacity make it ideal for offshore platforms and distressed ships.
  • Outfitted with advanced radar, sonar, and communication systems for reliable performance in remote areas.

PARTICULARS:

  • BUILDERS: SCHICHAU UNTERWESER AG, BREMERHAVEN
  • DATE OF KEEL LAID:1974
  • DATE OF DELIVERY:MARCH 1975

CONSTRUCTION:

  • Material: STEEL
  • No. of Decks: Three (3)
  • No. of Watertight Compartments: Two (2): low/lower deck in Engine
  • Bulbous Bow: N/A

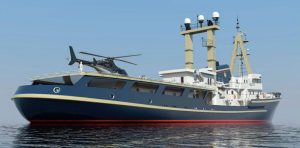

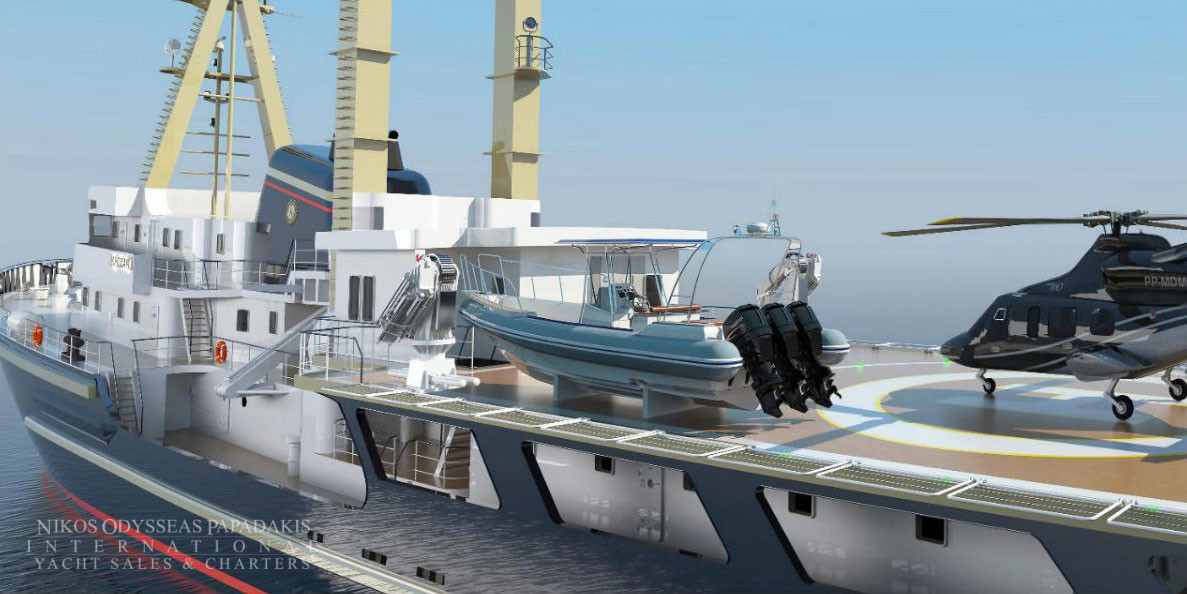

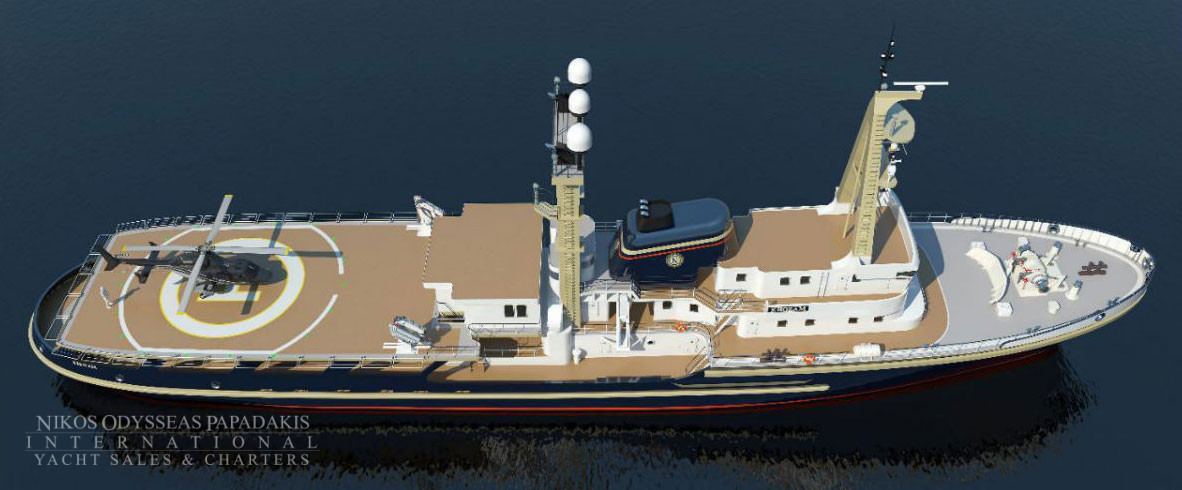

HELIDECK:

  • Dimensions: 13,6 x 23,9 = 325 M2
  • Location: After part of the Vessel
  • Compliance with ICS guidelines: Yes
  • TONNAGE
  • Gross: 1826
  • Net: 547

CANAL TONNAGE:

  • Suez Gross: 1864,26 tons
  • Suez Net: 1247,59 tons
  • Panama Gross: 1547,29 tons
  • Panama Net: 164,42 tons

DISPLACEMENT

  • Fully loaded: 3353,8 T
  • DEAD WEIGHT 1041,0 T
  • LIGHT SHIP 2360,5 T

PRINCIPAL DIMENSIONS

  • L.O.A. : 77,40m
  • L.B.P. : 69,70m
  • Beam: 13.219 mtrs
  • Draft: 5,80 m
  • Air Draft: (Mast height 33.50 mtrs)
  • Keel to Masthead: 40.50 mtrs
  • Parallel body: 39.00 mtrs

SPEED

  • Maximum: 16 Knots Range/miles: 5700
  • Cruising: 15 Knots Range/miles: 6080
  • Long range: 13 Knots Range/miles: 7015

FUEL

  • Type: GAS OIL

MACHINERY ETC.

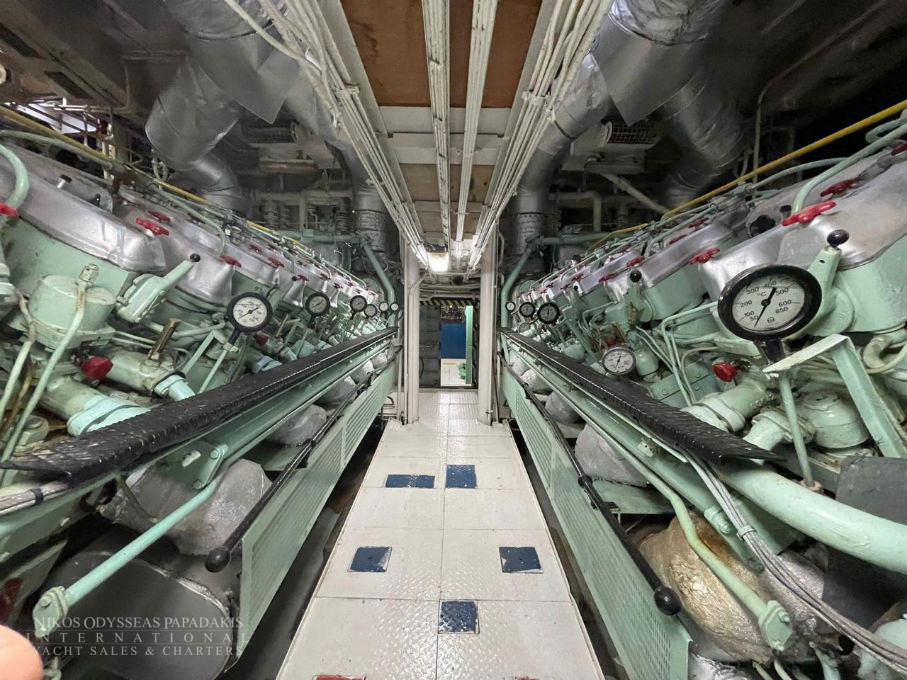

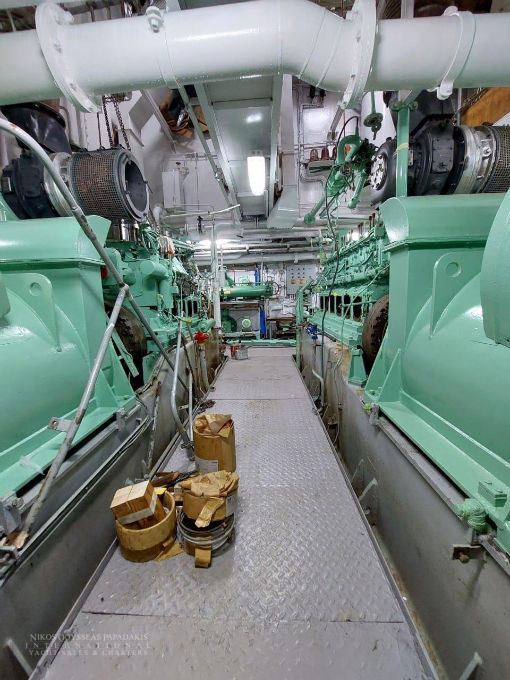

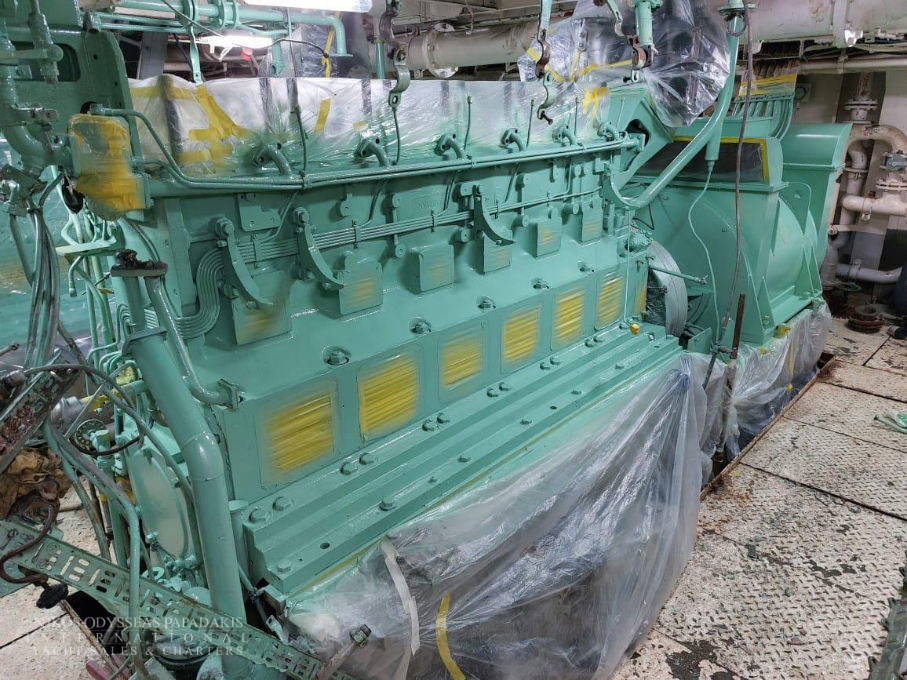

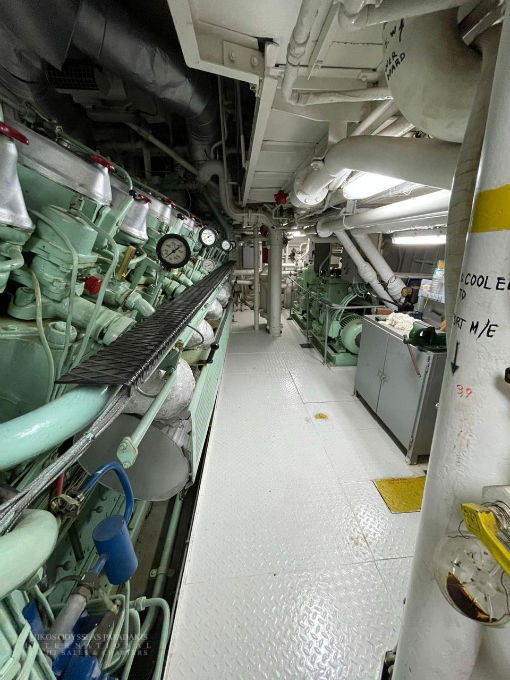

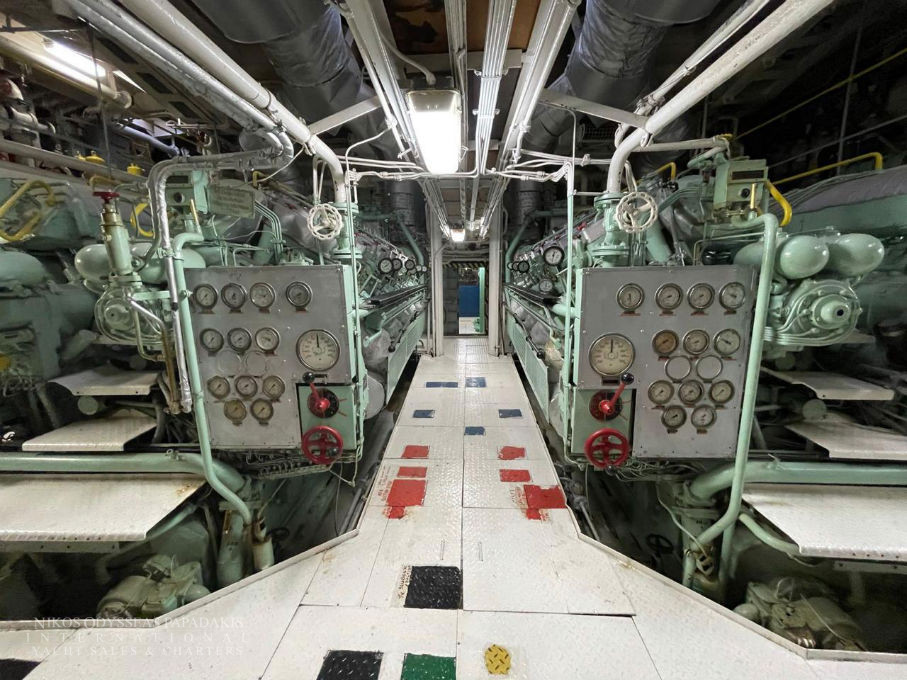

  • MAIN ENGINES
  • No.: Two (2) Running hours: P: 74801, S=74801
  • Makers: DEUTZ-AIWA
  • Type: RBV 12M-350
  • HP/RPM: 4400/430 each
  • Serial No.: Port 5251648 Stbd:52516477
  • GEAR BOXES
  • Makers: RENK GEAR
  • Type: BUS-80
  • Reduction: 430/148 rpm, Serial No.: P: 640415, S:640327
  • BOWTHRUSTER
  • Makers: GARBE-LAHMEYER
  • Type: A15/800
  • Capacity: 400 HP-245 Kw
  • GENERATOR SETS
  • No: Three (3)
  • Engine Makers: DEUTZ
  • Type: BA6-M528
  • KW: 441 each Voltage: 380V/50 Hz
  • Generator Makers: SMBS / 110-51
  • Power: 441 kW Phases: 3/50
  • Voltage: 380V Run. Hrs: 64953,64415,65405
  • EMERGENCY GENERATOR
  • Engine makers: DEUTS
  • Type: BF6M 716
  • KW: 167
  • Voltage: 380v V / 50 Hz
  • Generator Makers: SMB54 / 73-34-50-60
  • Power: 150Kw
  • Phases: 3 / 50 Hz
  • Voltage: 380 V
  • Run. Hrs: 30000

ELECTRICITY

  • Shore Power: 380V, AC 220 Amp / 50 Hz
  • Average Consumption In Port: 70 Kw for 24 Hrs

TANKS CAPACITY (litres)

  • Fuel: 460000 ltrs Fresh water: 350M/T
  • Lub. Oil: M/E + Pitch Oil: 46000 Ballast: 193 M/T ltrs
  • Dirty oil: 58,3 m3
  • Grey water: 3 m3

ANCHORS & CHAINS

  • Anchor type: Spek – patentanker
  • Anchor Weight: 1644 kg each
  • Anchor Maker: Blohm & Voss AG
  • Chains type: K2a Stud links
  • Chains Length: 248,5 each
  • Size of links: 40mm

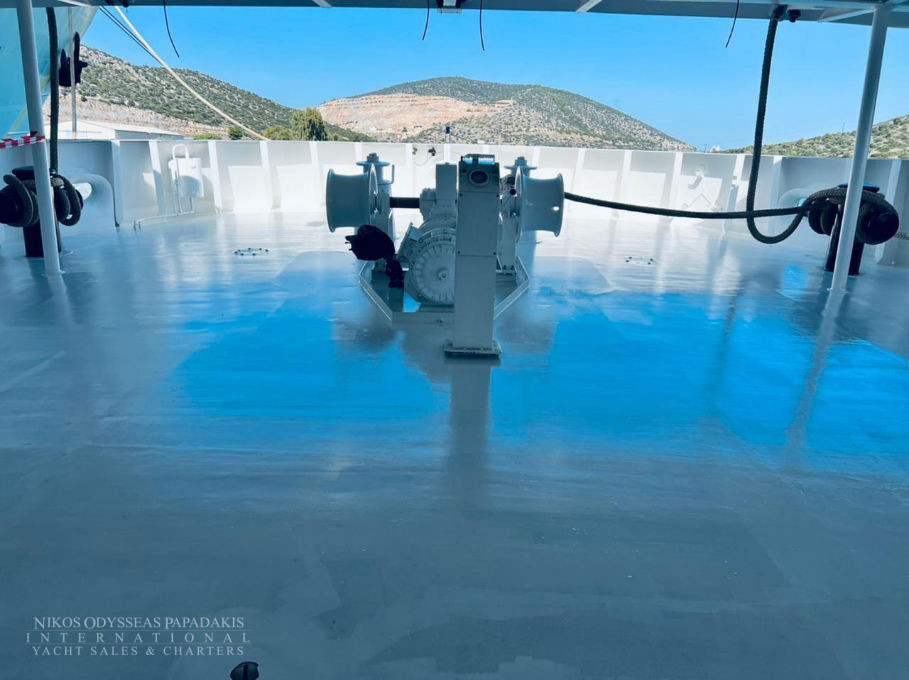

WINDLASS

  • No : One (1)
  • Makers: GARBE-LAHMEYER
  • Capacity: 12 Tons-Pull

CAPSTANS

  • No : 1
  • Makers: GARBE-LEHMEYER
  • Capacity: 6 Tons-Pull

PROPELLERS

  • Makers: ZEISE-LIAAEN VERSTELL
  • Type: 2 Shafts twin screw variable pitch / EF115/4, Diam 4000mm
  • Material: Bronze

STABILIZERS

  • Makers: N/A

WATER MAKERS

  • N/A
  • Daily consumption of fresh water only the Crew 4 to 6 tons
  • Daily consumption of fresh water with Guests 8 to 10 tons
  • Makers: LIFTSTAR 600 R/Air winch
  • Location: Main Deck (middle port, std)
  • Capacity: B.W.L=0.7 tons, S.W.L=0.6 tons

LIFE SAVING EQUIPMENT

  • Type: Motorboat (M.B)
  • Makers Hatteche, Stade
  • Capacity: 35 persons each boat

LIFE RAFTS

  • No.: Two (2)
  • Makers: (SURVIVA)
  • Type: SURVIVA
  • Capacity: 25 persons each
  • Description: Model: Projet yung, series: 2053
  • Particulars:
  • Length: 4.20m,
  • Weight empty: 257 Kg
  • Capacity: 6 persons or 450 kg,
  • Max.power: 50hp
